| Model Number | AOK-TP04C | ||||
|---|---|---|---|---|---|
| Brand Name | OEM | ||||
| Origin | China | ||||
| Small Orders | Accepted | ||||
Specifications
1x 2-pin terminal block connector
1x DC 5.5*2.5mm 12V input
1x USB 3.2 Gen 1 Type-C for connecting to a host
4x USB 3.2 Gen 1 Type-C port up to 5.0 Gbps
ESD and surge protection
LED indicator lights for power and data status
Dimensions: W67.4 x H228.1 x L97mm
Regulatory Approvals: CE/FCC/LVD/RoHS
Pacakge includes: Power adapter, instruction guide, USB cable, mounting kit
Features
• Built in ESD and surge protection helps prevent potential static damage to connected devices
• 4x USB 3.2 Gen 1 Type-C port offer 5Gbps SuperSpeed transfer rate, backwards compatible for USB 2.0/1.1
• 1x Power input, gives more power while operating
• 1x 2-pin terminal block input, for alternative power source
• Industrial metal housing and mounting brackets allows for flexible and secure installation options, perfect for offices, warehouses, and other harsh industrial environments
• Support Plug-and-Play and hot swapping. No driver installation needed
• Compliant with Fast Charging for international battery charging 1.2 Standard Protocol 5V3A max power output
• LED indicators for connection status on all ports
Interface USB 3.2 Gen 1 5Gbps, compatible with USB 2.0/ USB1.1
Housing made of high-quality aluminum
ESD 8kV air and surge 350W protection

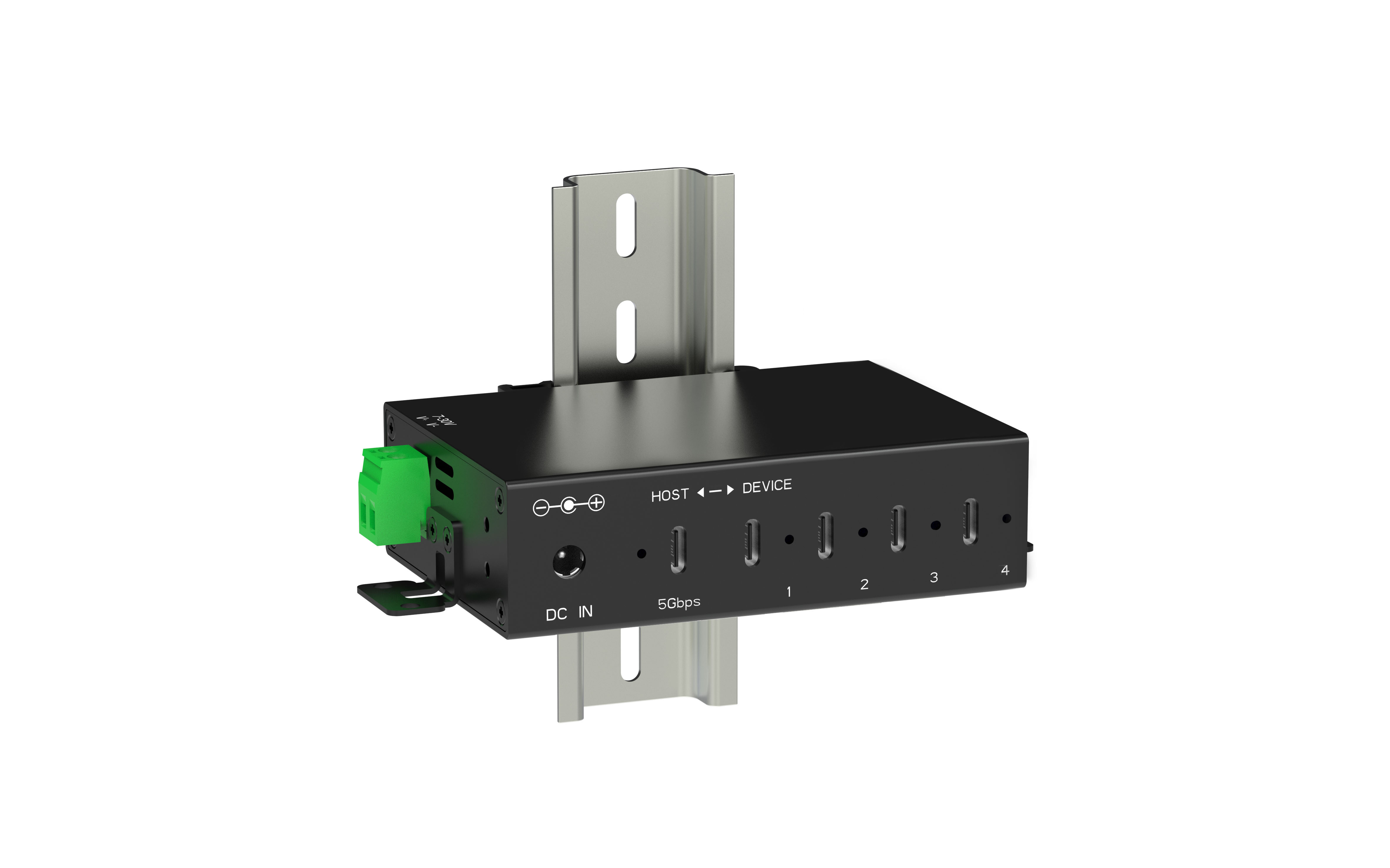

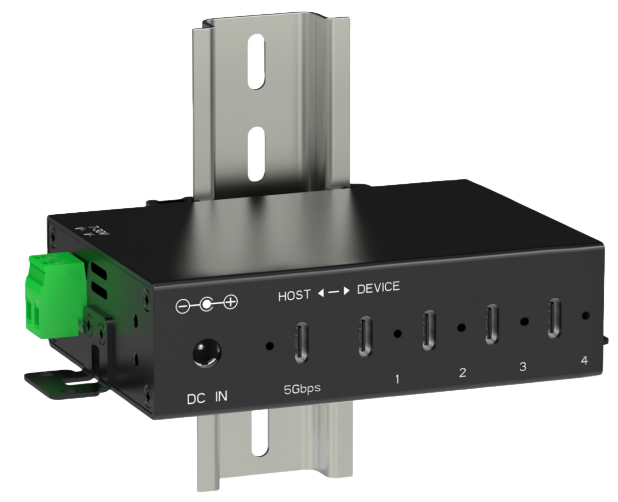

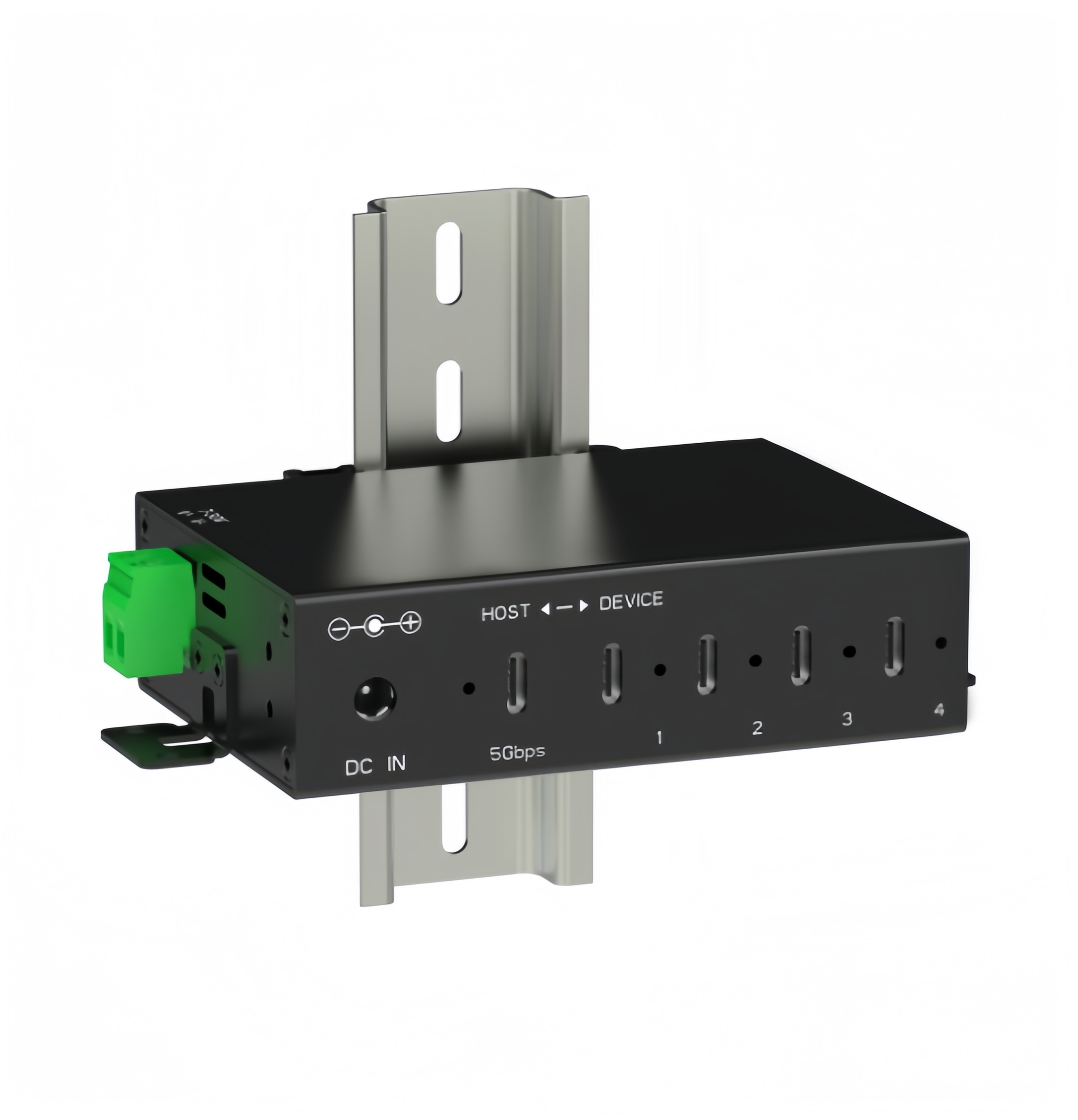

Wall, desk and DIN-rail mount supported, vertically and horizontally
