USB-C 100W PD3.0 Charger

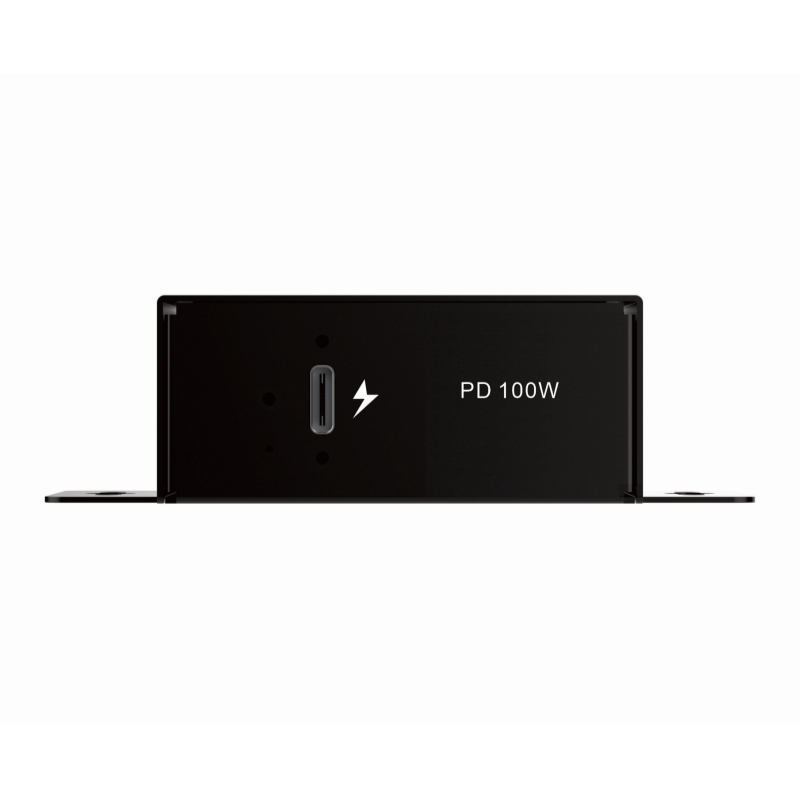

The AOK-PWR-1C-100W is a compact single-port industrial DC-to-USB charger delivering 100W USB-C PD3.0 from a 9–24V DC input. The smallest form factor in the PWR Series — one USB-C port, full 100W output, screw-lock connector, metal housing, over-current/over-voltage/ESD protection. Supports USB PD 3.0/PPS, QC 4+, SCP, AFC, FCP, Apple 2.4A, and BC1.2. Ideal for embedded systems, single-device kiosks, automotive dashboards, and industrial panels where space is limited and only one charging port is needed.
Key Features
100W Single USB-C PD3.0 Full 100W USB-C PD3.0 output from a single port — fast-charge any USB-C laptop at maximum speed. The compact, dedicated single-device solution in the PWR Series. | ⚡ Multi-protocol fast charging USB PD 3.0/PPS (3.3–21V 105W), QC 4+, SCP, AFC, FCP, Apple 2.4A, BC1.2 — compatible with virtually all USB-C laptops, tablets, and phones on the market. | ◆ Smallest form factor The most compact charger in the PWR Series. Metal housing with screw-lock USB-C port. Supports wall mount, desktop, and screw-fixed installation — fits where space is limited. | ⚐ 9–24V DC wide input DC 5.5×2.5mm jack or 2-pin terminal block input. Connects directly to 12V automotive or 24V industrial power. Over-current, over-voltage, and ESD protection built in. |
Technical Specifications
Typical Applications
Automotive dashboardsSingle-device kiosksIndustrial panelsEmbedded systemsCompact enclosuresPortable power stations
Need a custom power configuration or OEM branding?
AOK provides OEM / ODM services — custom port count, output power, housing, labeling, and CE documentation from MOQ 500 pcs.
