Industrial 10-Port USB 3.2 Gen 1 Type C Hub
The AOK-TP04C is a 4-port USB-C industrial hub delivering USB 3.2 Gen1 5Gbps on every downstream port. Designed for factory automation, PLC systems, barcode scanner networks, and industrial control environments where reliable USB-C connectivity is essential. With ESD 8kV/15kV/350W protection, -40°C to 85°C operating temperature, and flexible DIN rail / wall / desktop mounting in a rugged aluminum housing, it provides the reliability that consumer-grade hubs cannot match — at an accessible price point for large-scale deployments.
Key Specifications:
- USB Version: USB 3.2 Gen1, backward compatible with USB 2.0/1.1/1.0
- Upstream: 1 x USB-C (USB3.2 AM/CM cable, 1M)
- Downstream: 4 x USB-C female ports, up to 5Gbps
- Power Input: DC 5.5*2.5mm port or 2-pin terminal block, 12V-24V
- External Power (optional): 12V DC/2A, 24W or higher
- USB Power Output: BC1.2 charging, 5V/3A max per port
- ESD/Surge Protection: 8kV (contact) / 15kV (air) / 350W (surge)
- Operating Temp: -40°C to +85°C | Storage Temp: -40°C to +125°C
- Housing: Aluminum, Black
- Mounting: DIN rail / wall / desk, vertical or horizontal
- Compatibility: Windows, Mac OS, Linux
Key Features

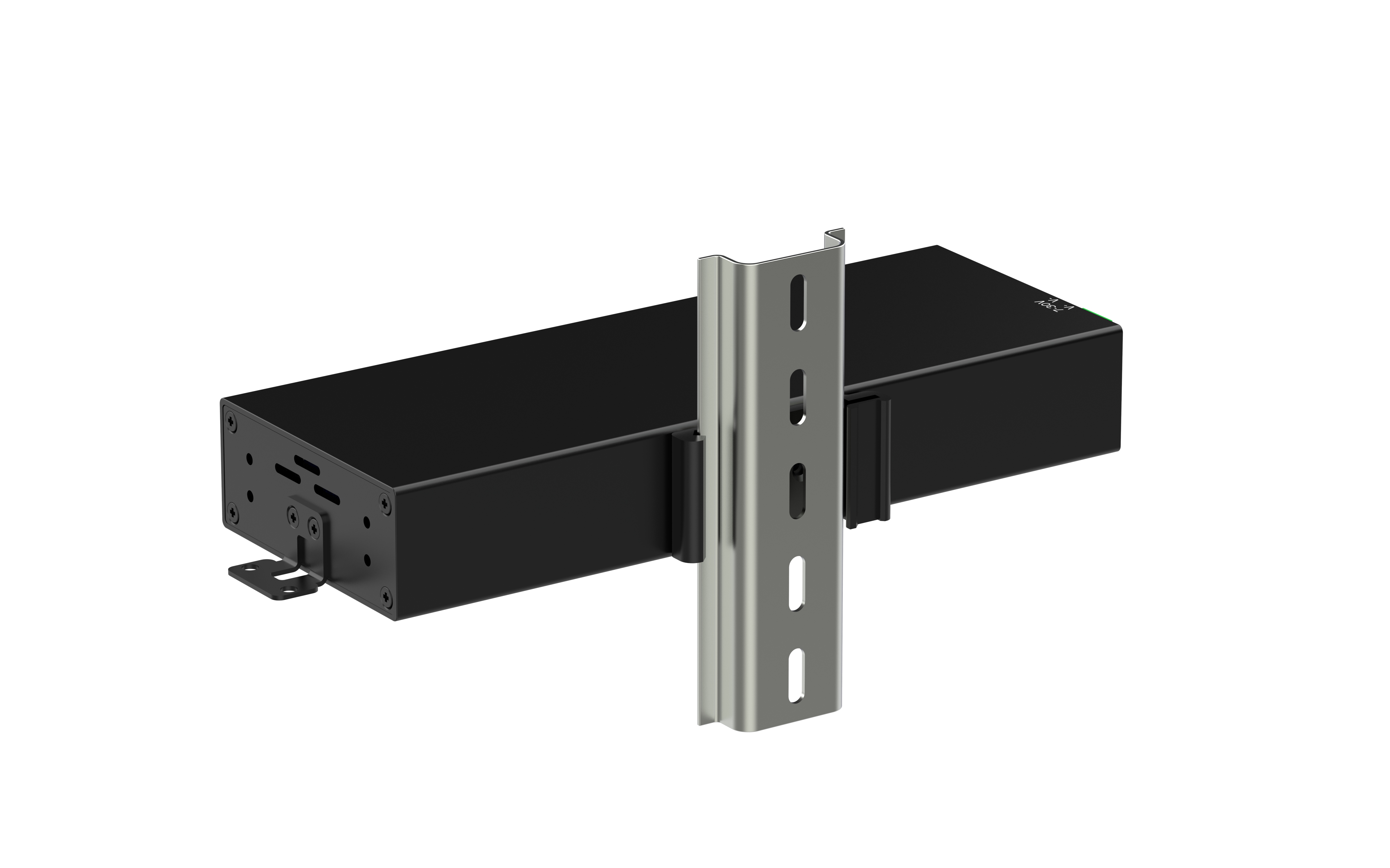

5Gbps USB 3.2 Gen1 on every port Full 5Gbps SuperSpeed on all 10 USB-C downstream ports. Backward compatible with USB 2.0 and 1.1 devices. Plug and play on Windows, macOS, and Linux — no driver needed. | 8/15kV ESD surge protection 8kV contact / 15kV air ESD protection plus 350W surge suppression on all ports. Compliant with IEC 61000-4-2 and IEC 61000-4-5. No external protectors needed — built to survive factory-floor static discharge events. | -40~85°C Wide temperature range Rated -40°C to 85°C operating temperature. Suitable for foundry floors, outdoor cabinets, cold-chain environments, and any application where consumer-grade hubs fail. | ◆ DIN rail + wall + desk mount Aluminum housing with integrated 35mm DIN rail bracket. Also supports wall mount and desktop installation — fits directly alongside PLCs in standard electrical cabinets, even with 10 ports on tap. |
TP04C vs TP07C vs TP10C — Which One Do You Need?
How to choose: The 10-port TP10C is built for deployments where you're consolidating a large number of USB-C peripherals — multiple scanners, HID devices, and PLC tools — onto a single host connection without daisy-chaining hubs. If your cabinet only needs a handful of ports, the smaller 4-port TP04C or 7-port TP07C keep the footprint tighter.
Technical Specifications
