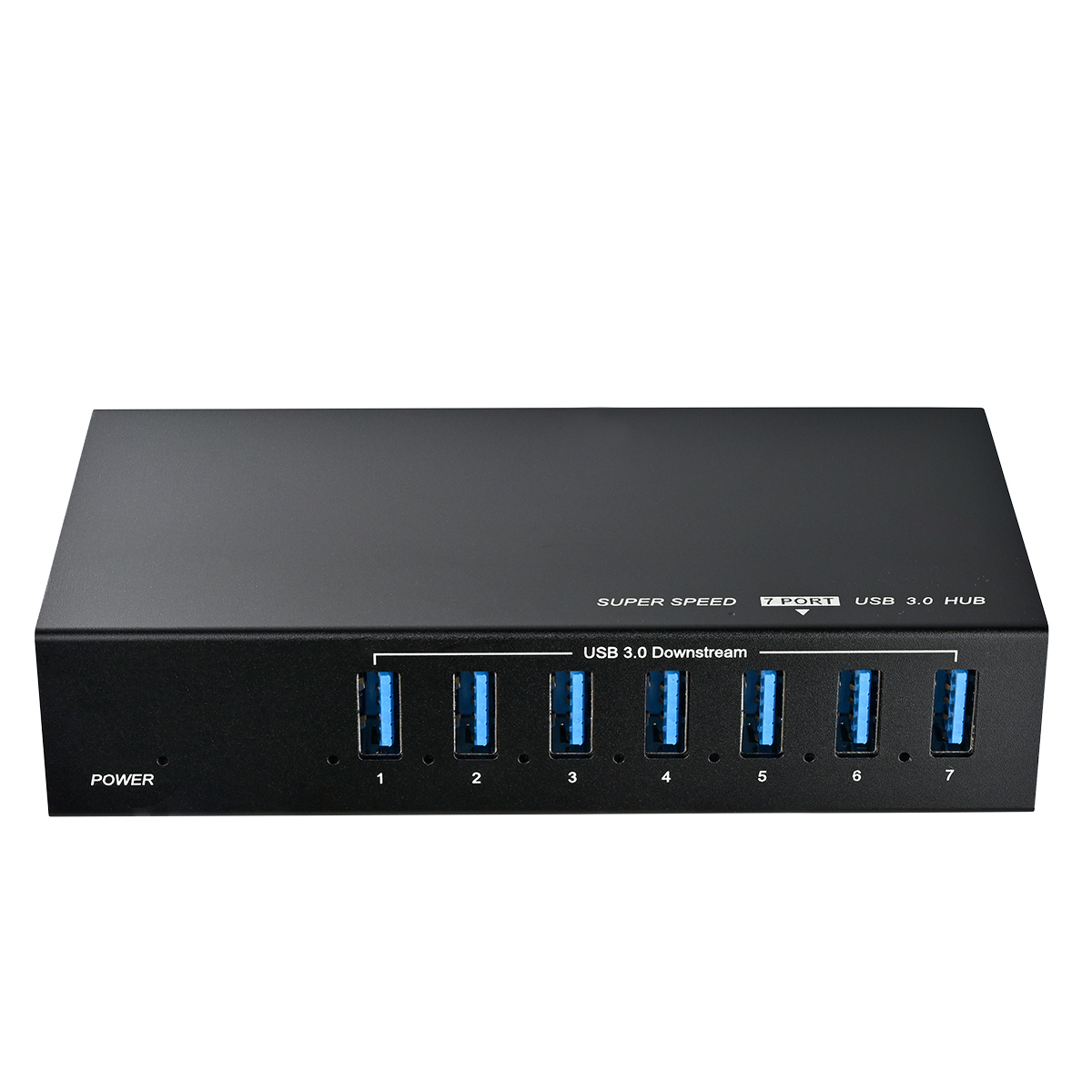

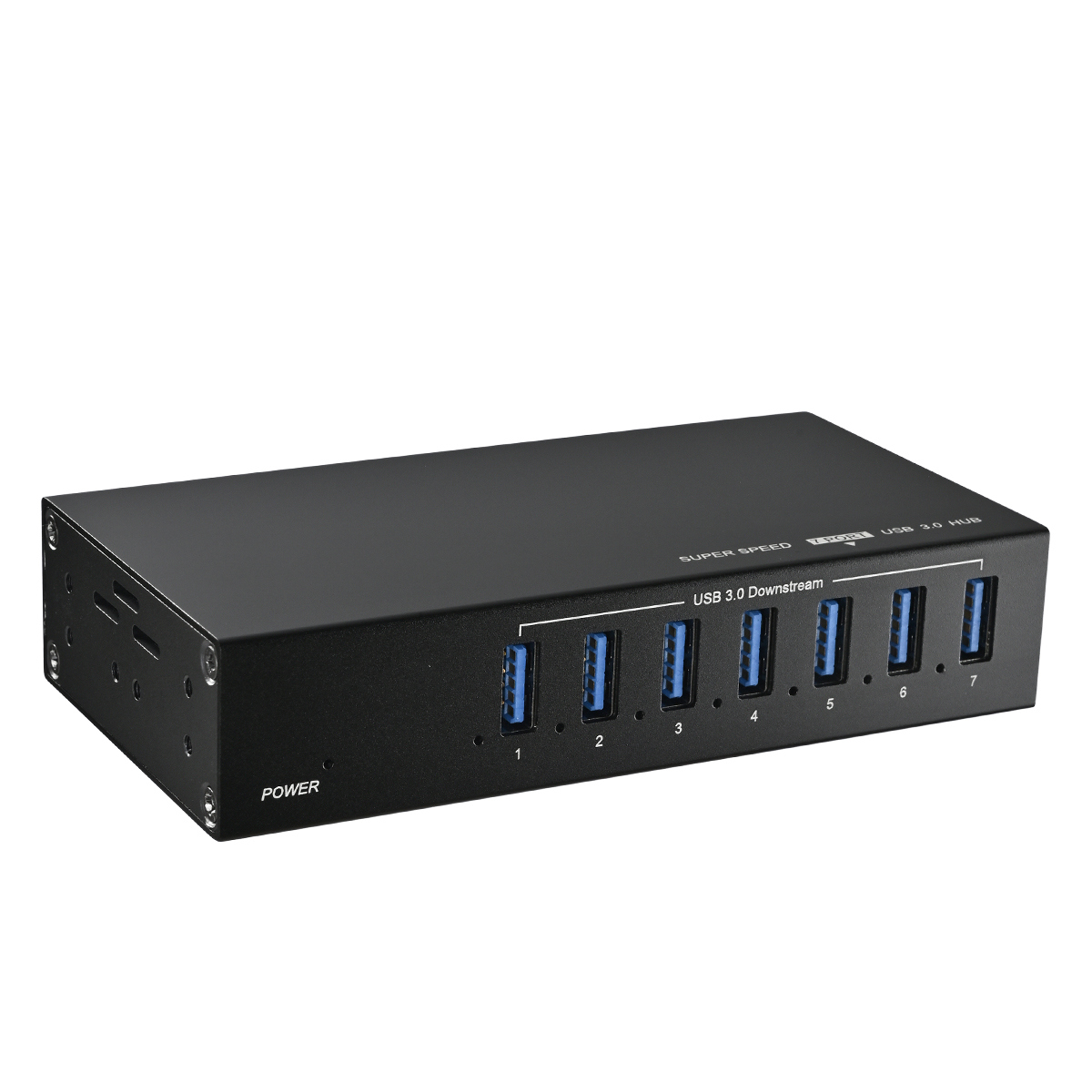

Industrial 7-Port USB 3.0 Hub, with ESD and Surge protection, Wall/Desk/DIN Rail Mountable
Specifications
Interface: 7x USB 3.0 port with up to 5Gbps transfer rate
1x USB Type B for connecting to host device
Input: 7~30V
Standard Output: 5V(±5%) 2A
Dimensions: 127 x 68 x 28 mm
Regulatory Approvals: CE/FCC/LVD/RoHS
Pacakge includes: 12V Power adapter, instruction guide, USB 3.0 cable 1m, DIN-rail brackets, mounting kit
Features
• Built in ESD and surge protection helps prevent potential static damage to connected devices
• 7x USB 3.0 port offer 5Gbps SuperSpeed transfer rate, backwards compatible for USB 2.0/1.1
• 1x Power input, gives more power while operating
• Industrial metal housing and mounting brackets allows for flexible and secure installation options, perfect for offices, warehouses, and other harsh industrial environments
• Support Plug-and-Play and hot swapping. No driver installation needed
• Compliant with Fast Charging for international battery charging 1.2 Standard Protocol
• LED indicators for Power (red) and connection status (blue) on all ports
Interface USB 3.2 Gen 1 5Gbps, compatible with USB 2.0/ USB1.1
Housing made of high-quality aluminum
Input:
- 1x USB 3.0 Type-B upstream port for connection to the host device
- 1x DC power input port (DC5.5*2.5)

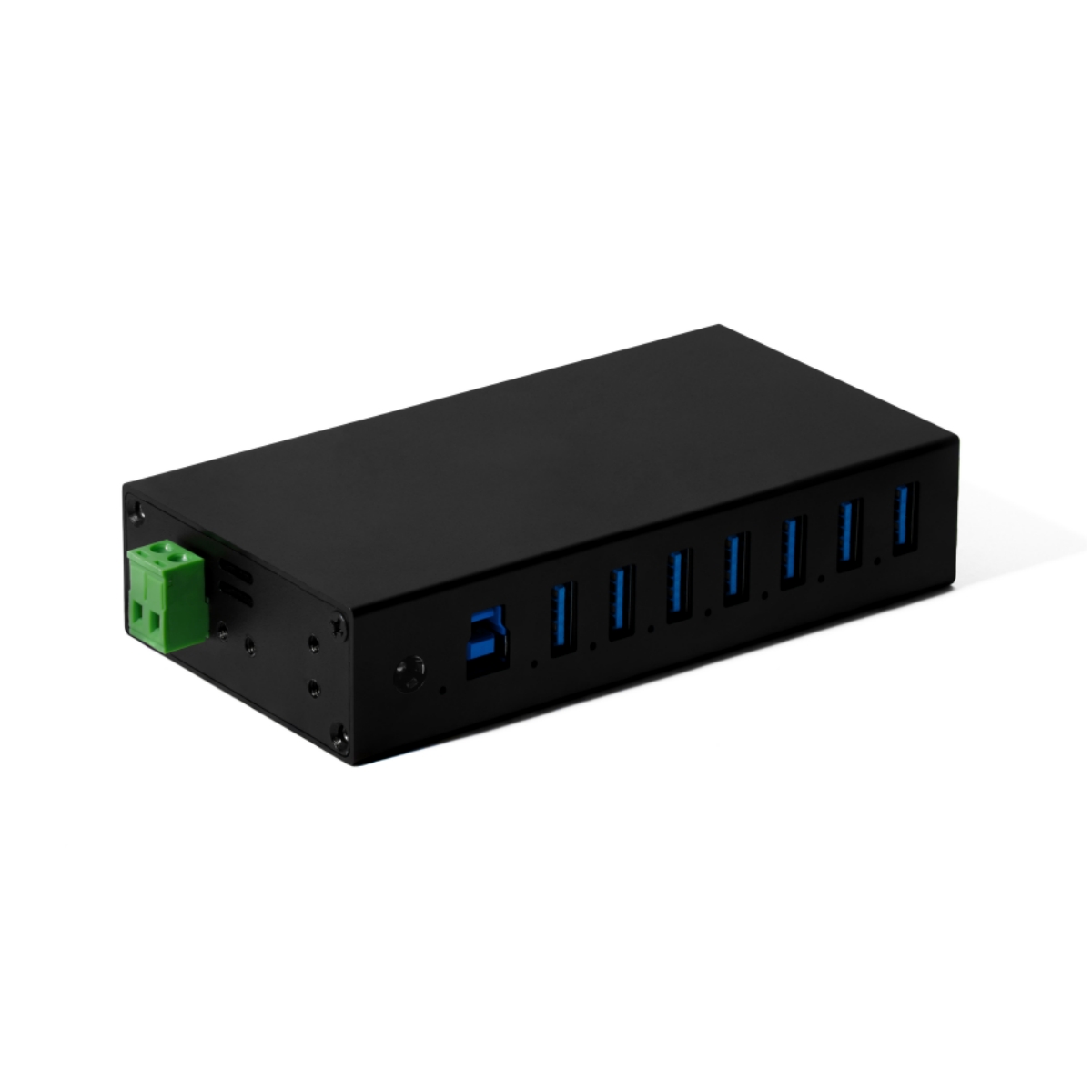

- 1x Alternate 2-wire terminal block power connector
Output: USB 3.2(Gen 1) 4/7/10/13/16x Type-A up to 5 Gbps
USB-C Power supports BC1.2 protocol discharge, 5V3A (Max)
LED indicates power and data
ESD 8kV air and surge 350W protection

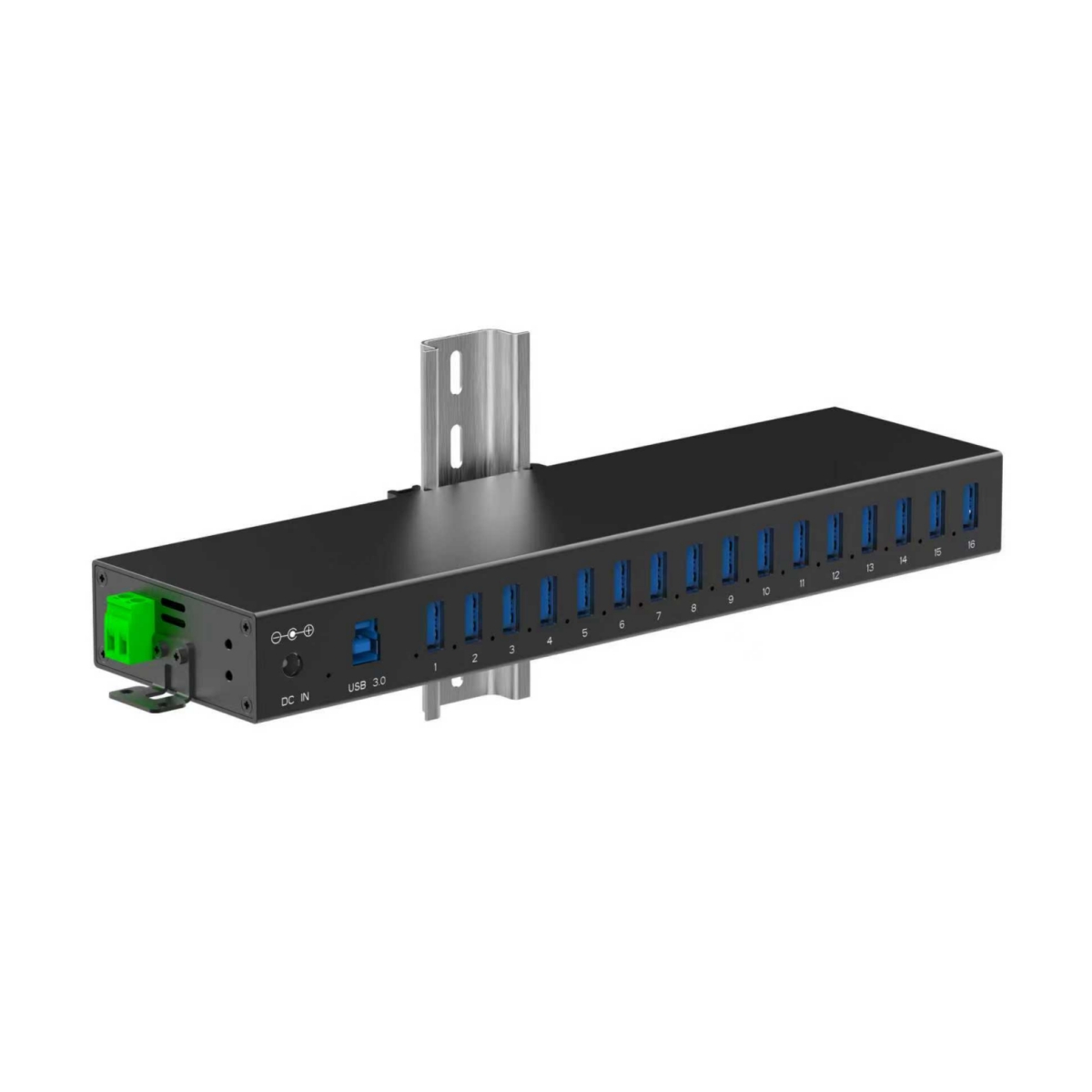

Wall, desk and DIN-rail mount supported, vertically and horizontally
