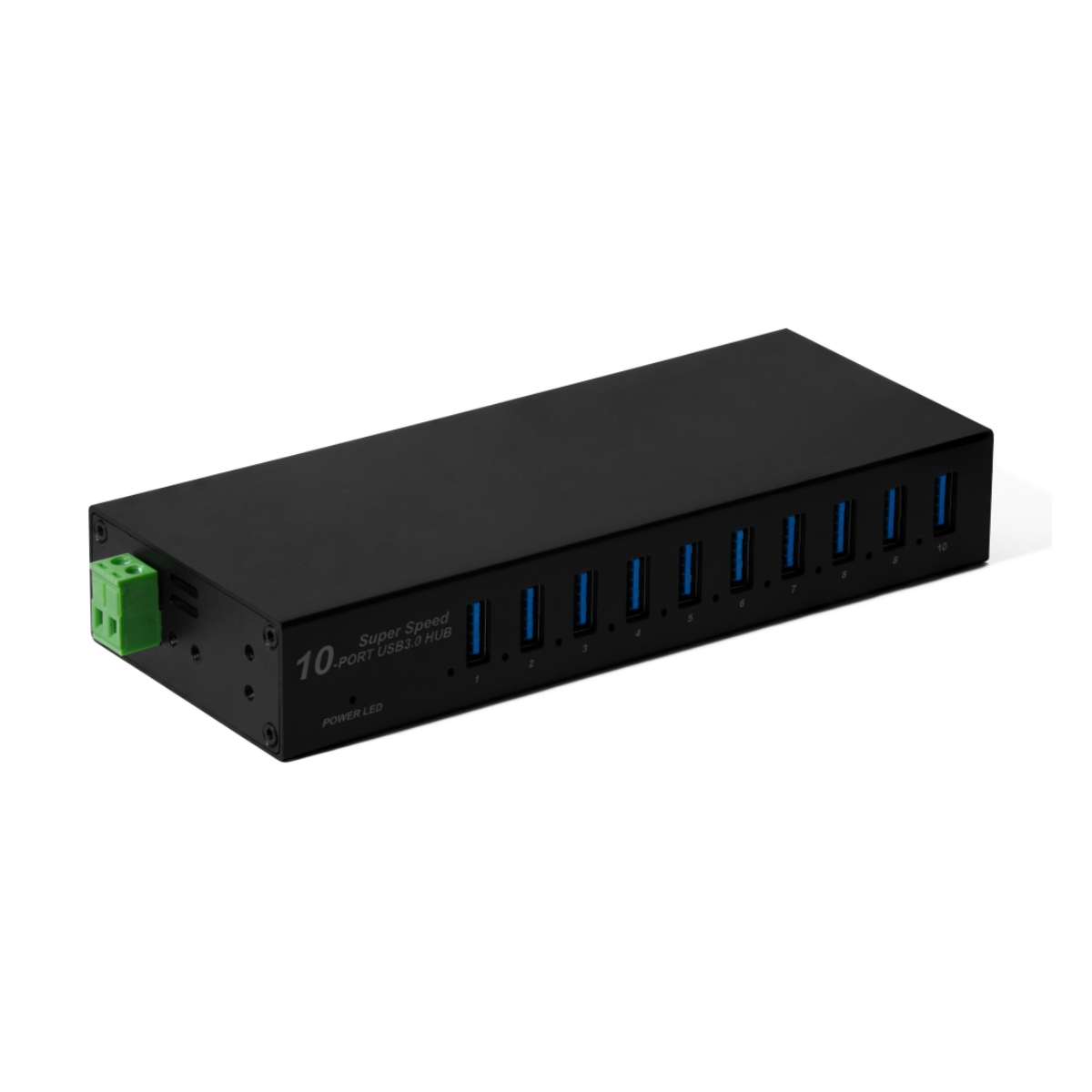

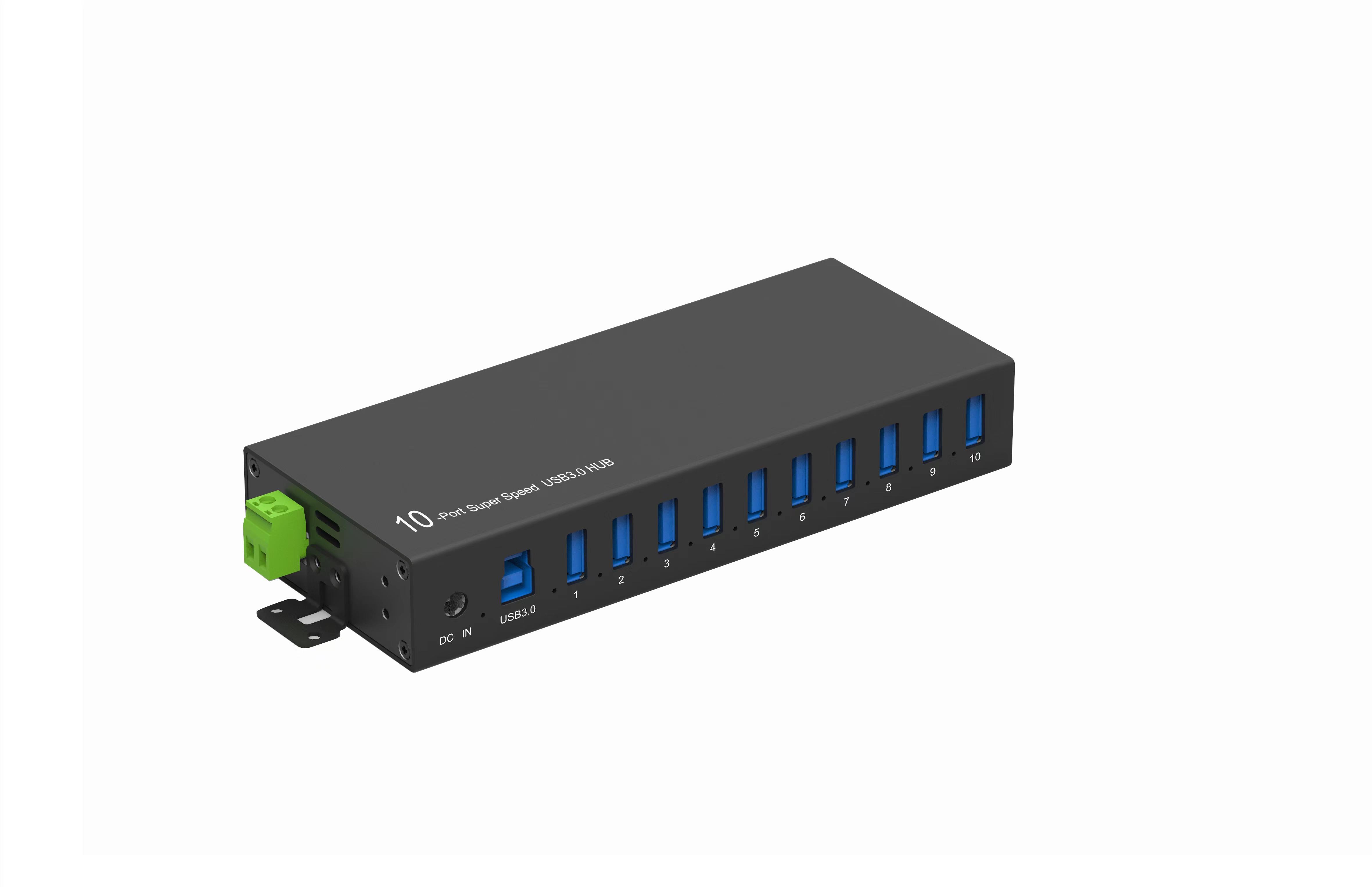

10-Port Industrial USB 3.0 Hub for Embedded Systems & Automation | DIN Rail | ESD 8KV | 7~30V
Model No.: AOK-TPHUB10
The AOK-TPHUB10 is designed for system integrators, machine builders, and OEM equipment manufacturers who need a reliable USB expansion solution inside industrial control cabinets, embedded computing systems, and automation panels. Its wide input voltage range (7~30V DC) is directly compatible with 12V and 24V industrial power rails, eliminating the need for a separate power supply. The terminal block connector allows direct wiring to DIN rail power supplies — ideal for PLC-based environments. With ESD 8KV air discharge protection (IEC 61000-4-2), it safeguards connected devices in factory floors, laboratory equipment, and medical workstations.
Specifications
Interface: 10 x USB 3.0 port with up to 5Gbps transfer rate
1x USB Type B for connecting to host device
Input: 7~30V
Standard Output: 5V(±5%) 2A
Dimensions: 164 x 68 x 28 mm
Regulatory Approvals: CE/FCC/LVD/RoHS
Pacakge includes: 20V3A Power adapter, instruction guide, USB 3.0 cable 1m, mounting kit
Target Application: Industrial control cabinet, embedded PC, automation panel, medical workstation, laboratory
Compatible With: Advantech IPC, Beckhoff Panel PC, Siemens IPC, custom embedded systems
Power Connection: DC barrel + terminal block (DIN rail direct wiring)
ESD Standard: IEC 61000-4-2 Level 4
Operating Temperature: -40°C to +85°C
Features
• Built in ESD and surge protection helps prevent potential static damage to connected devices
• 10x USB 3.0 port offer 5Gbps SuperSpeed transfer rate, backwards compatible for USB 2.0/1.1
• 1x Power input, gives more power while operating
• Industrial metal housing and mounting brackets allows for flexible and secure installation options, perfect for offices, warehouses, and other harsh industrial environments
• Support Plug-and-Play and hot swapping. No driver installation needed
• Compliant with Fast Charging for international battery charging 1.2 Standard Protocol
• LED indicators for Power (red) and connection status (blue) on all ports
Interface USB 3.2 Gen 1 5Gbps, compatible with USB 2.0/ USB1.1
Housing made of high-quality aluminum
Input:
- 1x USB 3.0 Type-B upstream port for connection to the host device
- 1x DC power input port (DC5.5*2.5)
- 1x Alternate 2-wire terminal block power connector
Output: USB 3.2(Gen 1) 4/7/10/13/16x Type-A up to 5 Gbps
USB-C Power supports BC1.2 protocol discharge, 5V3A (Max)
LED indicates power and data
ESD 8kV air and surge 350W protection
Wall, desk and DIN-rail mount supported, vertically and horizontally
FAQ:
Q: Can this USB hub be powered from a 24V DIN rail power supply?
A: Yes. The item AOK-TPHUB10 accepts 7~30V DC input via both barrel connector and terminal block, making it directly compatible with standard 24V industrial DIN rail power supplies.
Q: Is this USB hub compatible with Advantech or Beckhoff industrial PCs?
A: Yes. The item AOK-TPHUB10 connects via standard USB 3.0 Type-B upstream port and is compatible with any industrial PC including Advantech,
Beckhoff and custom embedded systems.
Q: What ESD protection standard does this hub meet?
A: IEC 61000-4-2 Level 4: 8KV air discharge and surge 350W protection on all USB ports.
Q: Can I order without a power supply unit (PSU)?
A: Yes. PSU-free versions powered via terminal block are available.
Contact us for MOQ and pricing.
