Industrial 4-Port USB 3.2 Gen 1 Mini Type-A Hub, ESD and Surge Protection

■

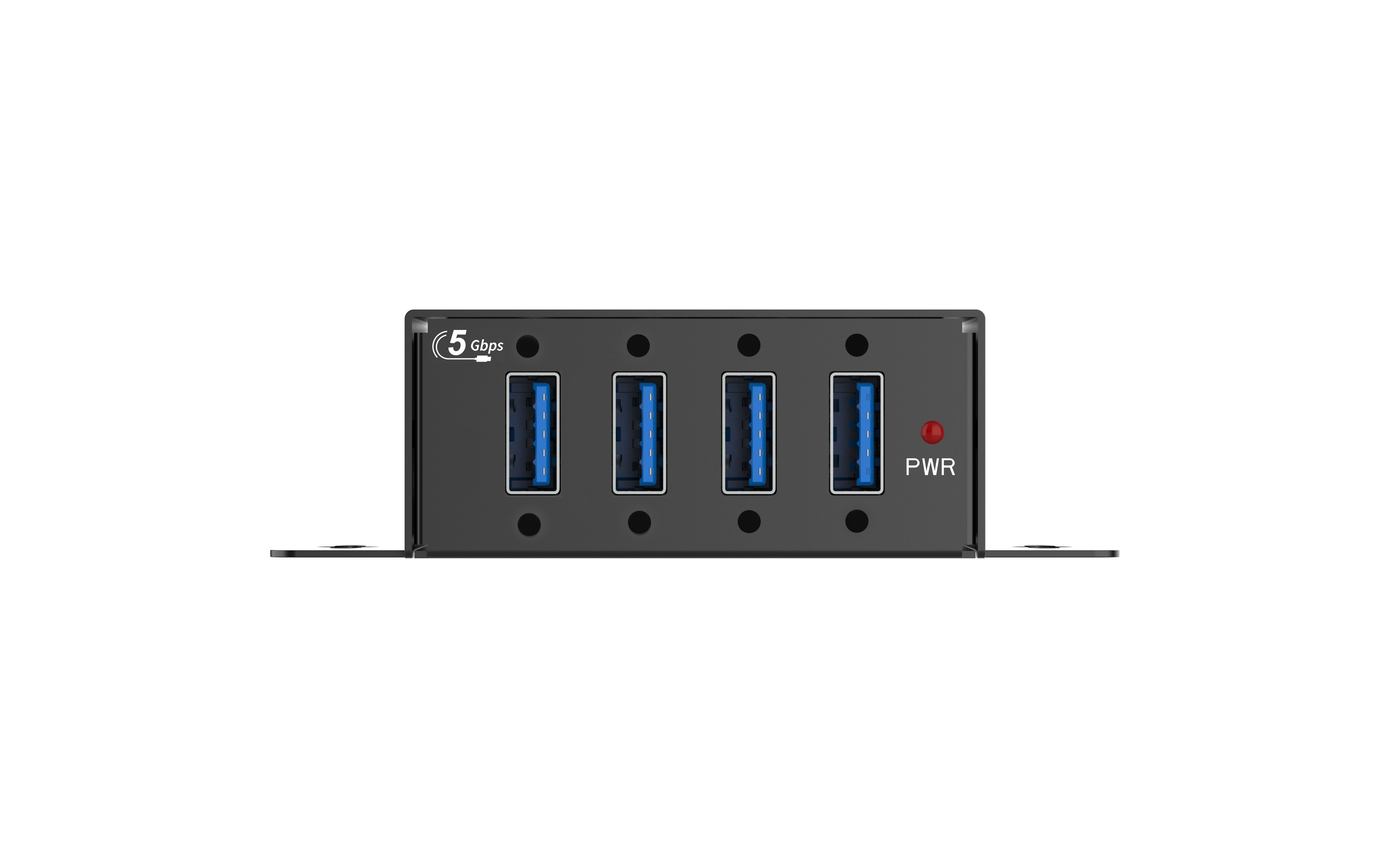

Screw-Lock on Every Port

Both the USB-C host port and all four USB-A downstream ports feature screw-lock connectors. Cables physically lock into place and cannot be pulled free by vibration, accidental contact, or cable weight — essential for unattended installations where a disconnection means downtime.

▲

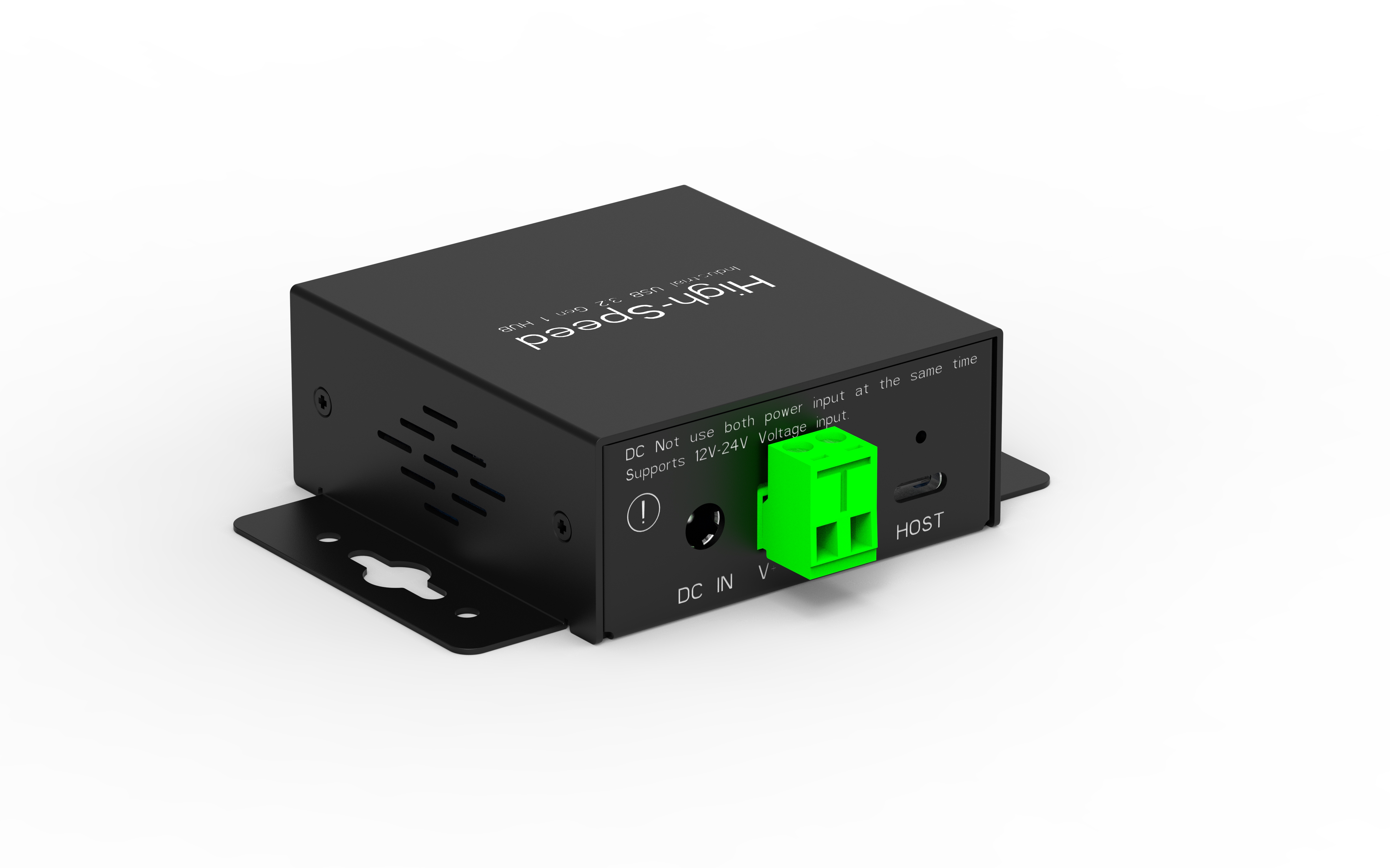

Wide 12–24V DC Input

Dual power input options — DC barrel jack and 2-pin terminal block — accept any voltage from 12V to 24V. This wide input range integrates directly with standard industrial power rails, eliminating the need for dedicated power adapters in control panels and automation enclosures.

★

ESD & Surge Protection

Built-in ESD and surge protection on all ports safeguards connected devices against static discharge and power spikes — common in manufacturing, warehouse, and field environments where electrostatic damage is a constant risk.

◆

Ultra-Compact Form Factor

At just 63 × 27 × 93 mm, the MTP4A-1 fits into tight enclosures, behind monitors, under desks, inside kiosks, or alongside embedded boards. Smaller than a deck of cards, yet delivers full industrial-grade functionality.

●

Flexible Mounting

Wall mount, surface mount, and desktop placement supported out of the box. The included mounting kit allows secure installation in control cabinets, rack enclosures, kiosk housings, and workstation setups without additional hardware.

▸

Plug & Play, No Drivers

Works instantly on Windows, macOS, and Linux with no driver installation. Supports hot-swapping and BC1.2 fast charging protocol. LED indicators on each port show power and connection status at a glance.

Industrial Automation & Control Panels

Connect barcode scanners, HMI touchscreens, label printers, and sensor modules inside control cabinets. The terminal block power input integrates directly with industrial 12V/24V rails — no external adapter cluttering the enclosure.

Kiosk & Self-Service Terminals

Mount behind the tablet inside a kiosk enclosure to connect payment terminals, receipt printers, and ID scanners. Screw-lock connectors prevent disconnections in high-traffic, public-facing environments.

Embedded Systems & Edge Computing

Expand USB connectivity for single-board computers, IoT gateways, and edge devices in space-constrained deployments. The compact size and wide voltage input make it ideal for installations where standard hubs won't fit.

Digital Signage & POS Systems

Add USB peripherals to media players, POS tablets, and signage displays. Wall-mount the hub behind the screen for a clean, invisible installation with secure screw-lock connections.
