4-Port USB 2.0 Extender Hub, 0-120M

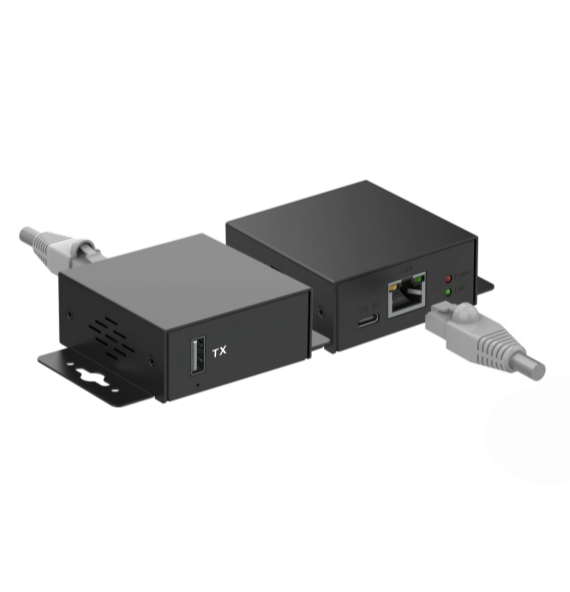

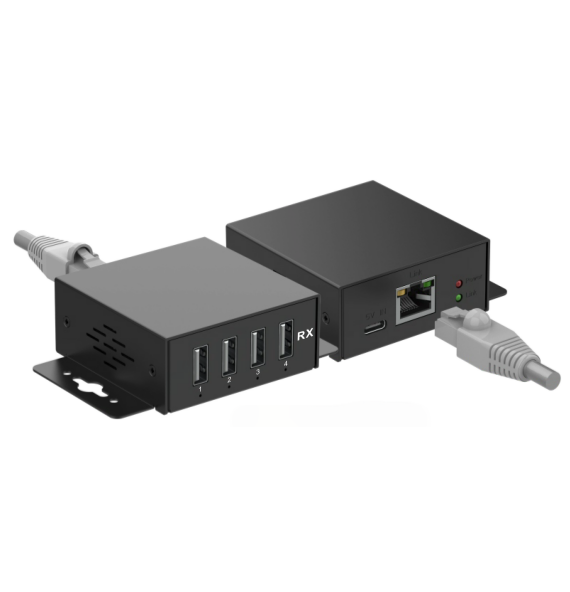

The AOK-HUB51A is a 4-port USB 2.0 extender hub that extends USB signals up to 100 meters over Cat5e or 120 meters over Cat6/Cat7 Ethernet cable. It delivers 480Mbps full-speed USB 2.0 connectivity with plug-and-play installation — no driver required. The system consists of a transmitter (TX) connected to the host PC and a receiver (RX) providing 4 USB-A downstream ports. Supports cascade deployment via standard Gigabit Ethernet switches for flexible multi-point installations.
Key Features
↔ Up to 120m over Ethernet Extend USB 2.0 signals up to 100m over Cat5e or 120m over Cat6/Cat7 cable — using standard, widely available Ethernet infrastructure with no special cabling required. | ▶ Plug & play, no driver Works instantly on Windows, macOS, and Linux. Connect the TX to the host and RX to USB devices — supports printers, cameras, scanners, keyboards, mice, touchscreens, and USB flash drives. | ⚡ 480Mbps full speed Compliant with USB 2.0 specifications at 480Mbps. Backward compatible with USB 1.1 devices. Supports 4 channels of USB devices simultaneously. | ✦ Cascade via Gigabit switch Support cascade connections through standard Gigabit Ethernet switches, enabling flexible multi-point deployments across floors and buildings without additional hardware. |
Technical Specifications
Typical Applications
Digital signageSecurity & surveillanceConference roomsFactory automationMulti-floor deploymentsPOS & kiosk systems
HUB51A vs HUB52A — Which One Do I Need?
Need a custom distance, port count, or OEM branding?
AOK provides OEM / ODM services — custom cable type, housing, labeling, and documentation from MOQ 500 pcs.
