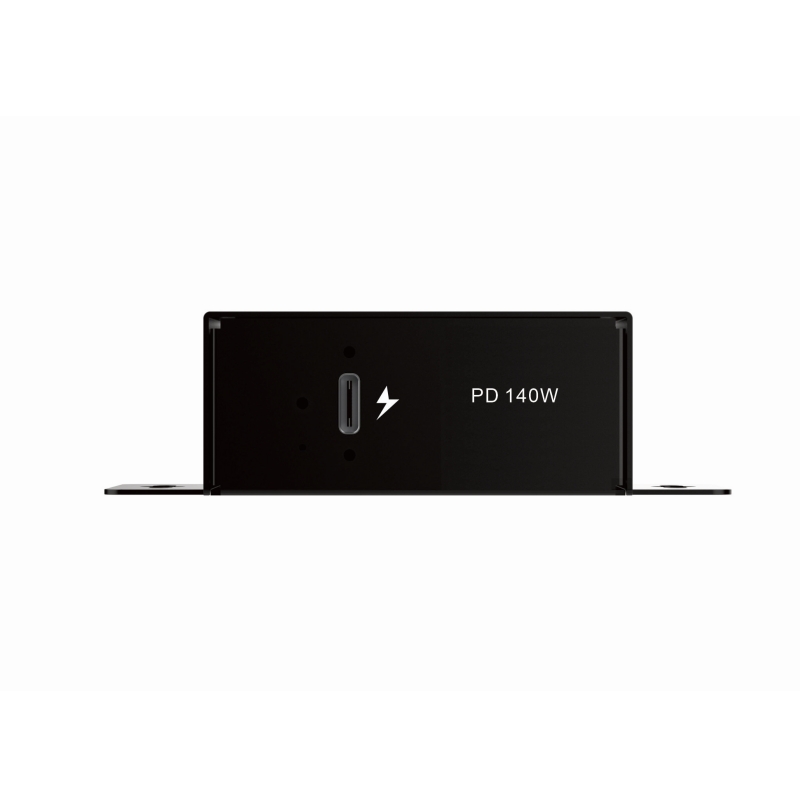

USB-C 140W PD3.1 EPR Charger

The AOK-PWR-1C-140W is the most powerful single-port charger in AOK's industrial DC-to-USB range, delivering 140W USB-C PD3.1 EPR (Extended Power Range) from a 9–24V DC input. Supporting the latest USB PD 3.1 standard at up to 28V/5A, it can fast-charge high-performance laptops, workstations, and industrial tablets at maximum speed. Screw-lock USB-C port, compact metal housing, over-current/over-voltage/ESD protection. Also supports PD 3.0/PPS, QC 4+, SCP, AFC, FCP, Apple 2.4A, and BC1.2 for full backward compatibility. Designed for automotive, heavy machinery, industrial workstations, and embedded applications where maximum single-device charging power is required.

Inquire Now Next Product

Product Details

Key Features

140W

PD3.1 EPR single port

The highest single-port power in the PWR Series. USB PD 3.1 Extended Power Range at up to 28V/5A — fast-charge the most demanding high-performance laptops and mobile workstations.

⚡

Latest PD3.1 + full backward compatibility

USB PD 3.1 EPR 140W, PD 3.0/PPS, QC 4+, SCP, AFC, FCP, Apple 2.4A, BC1.2. Charges any USB-C device from 5W phones to 140W workstations — one charger covers everything.

◆

Compact metal housing

Robust steel chassis with screw-lock USB-C port for vibration-resistant connection. Supports wall mount, desktop, and screw-fixed installation on panels and enclosures.

⚐

9–24V DC wide input

DC 5.5×2.5mm jack or 2-pin terminal block input. Connects directly to 12V automotive or 24V industrial power. Over-current, over-voltage, and ESD protection built in.

Technical Specifications

Model	AOK-PWR-1C-140W
USB Specification	Charging only (no USB data transfer)
Downstream Ports	1x USB Type-C
USB-C Output	PD3.1 EPR 140W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A; PPS 3.3–28V; QC4+, SCP, AFC, FCP, Apple 2.4A, BC1.2)
Maximum Total Output	140W
Power Input	DC 5.5×2.5mm jack or 2-pin terminal block (do not use both simultaneously)
Input Voltage	9V–24V DC
Protection	Over-current, over-voltage, ESD
Connector Security	USB-IF standard screw-lock USB-C
Housing	Metal, black
Mounting	Wall mount / Desktop / Screw-fixed to panel

Typical Applications

High-performance laptopsMobile workstationsAutomotive 12V/24VHeavy machineryIndustrial panelsEmbedded systems

Need a custom power configuration or OEM branding?

AOK provides OEM / ODM services — custom output power, housing, labeling, and CE documentation from MOQ 500 pcs.

Request a quote →
