Industrial 4-Port USB 3.2 Gen 2 Compact Type-C Hub – AOK-MTP4C
The AOK-MTP4C-10G is a compact industrial USB-C hub that delivers true USB 3.2 Gen 2 performance at 10Gbps across all four downstream Type-C ports. Engineered for mission-critical environments, it combines high-speed data transfer with robust ESD and surge protection in a space-saving aluminum enclosure.
Whether deployed inside a self-service kiosk, an edge computing gateway, a medical workstation, or a factory automation panel, the MTP4C provides reliable, high-bandwidth USB-C connectivity where space is at a premium.
Model: AOK-MTP4C-10G
Industrial aluminum mini 4-port USB 3.2 Gen 2 hub with screw-lock Type-C downstream ports and screw-lock USB-C host connection. 10Gbps SuperSpeed+ on all ports. Wide 12–24V DC input via barrel jack or 2-pin terminal block. Wall, surface, and desktop mountable. 8KV/15KV/350W ESD and surge protection on all ports.
Specifications
| Model | AOK-MTP4C-10G |
| USB Version | USB 3.2 Gen 2 (10 Gbps), backward compatible with USB 3.2 Gen 1 / USB 2.0 / 1.1 / 1.0 |
| Upstream (Host) Port | 1x USB Type-C, screw lock compatible |
| Upstream Cable | USB 3.2 Gen 2 CM/CM screw lock black cable L=1M |
| Downstream Ports | 4x USB Type-C female, up to 10.0 Gbps, screw-lock type |

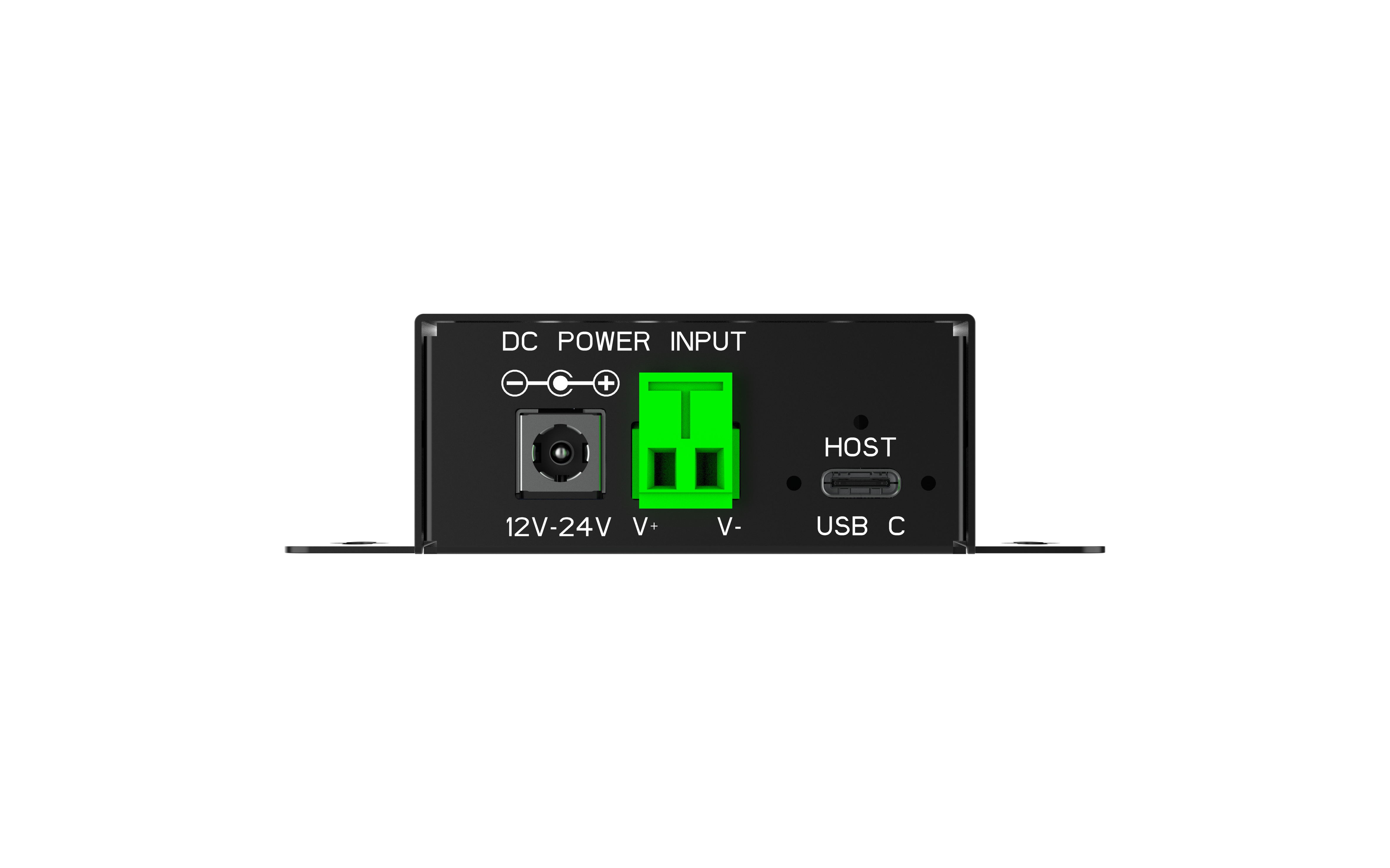

| Power Input Port 1 | 1x DC In (DC5.5*2.5mm) — Do not use both power inputs at the same time |
| Power Input Port 2 | 1x 2-Pin Terminal Block — If 12V–24V power is available at user end, no additional DC adapter is required |
| Power Input Voltage | 12V–24V DC |
| External Power Supply (Optional) | 12V DC/2A, or higher |
| USB Power Output | Support BC1.2 charging |
| ESD Surge Protection | 8KV / 15KV / 350W |
| Over-Current & Over-Voltage | Yes |
| Hot Plug & Plug-and-Play | Yes |
| LED Indicator | Power and data status on all ports |
| Compatibility | Windows, macOS, and Linux |
| Housing | Metal, black |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Operating Humidity | 10% to 85% RH (no condensation) |
| Weight | Approx. 150g |
| Dimensions | W65.4 x H26.85 x L63mm / W65.4 x H26.85 x L92.6mm (with mounting ears) |
| Mounting | Wall mount, surface mount, desktop (mounting kit included) |
| Package Contents | USB-C to USB-C cable, mounting kit, user manual (power adapter optional) |
Features
■ 10Gbps SuperSpeed+ USB-C USB 3.2 Gen 2 on all four downstream ports delivers 10Gbps — twice the bandwidth of Gen 1 hubs. Ideal for high-resolution cameras, NVMe storage, and data-intensive USB-C peripherals. | ▲ 8KV/15KV ESD Protection Industry-leading 8KV contact / 15KV air / 350W surge protection on all ports. Safeguards connected devices against static discharge and power spikes in factory, warehouse, and field environments. | ★ Wide 12–24V DC Input Dual power input options — DC barrel jack and 2-pin terminal block — accept 12V to 24V. Integrates directly with standard industrial power rails in control panels and automation enclosures without additional adapters. |
◆ Ultra-Compact Metal Housing At just 65.4 × 26.85 × 63 mm (without ears), this hub fits inside tight enclosures, behind monitors, inside kiosks, or alongside embedded boards. Rated for -20°C to +70°C operating temperature. | ● Screw-Lock on Every Port All five USB-C ports (1 host + 4 downstream) feature screw-lock connectors. Cables physically lock into place — no disconnections from vibration, accidental contact, or cable weight in unattended deployments. | ▸ Plug & Play, No Drivers Works instantly on Windows, macOS, and Linux with no driver installation. Supports hot-swapping and BC1.2 charging. LED indicators on each port show power and connection status at a glance. |
Typical Applications
Industrial Automation & Control Panels Connect USB-C sensors, HMI touchscreens, label printers, and monitoring modules inside control cabinets. Terminal block power integrates directly with industrial 12V/24V rails. |
Embedded Systems & Edge Computing Expand USB-C connectivity for single-board computers, IoT gateways, and edge devices in space-constrained deployments. 10Gbps bandwidth supports high-throughput data acquisition and NVMe storage. |
Kiosk & Self-Service Terminals Mount behind a tablet inside a kiosk enclosure to connect USB-C payment terminals, printers, and scanners. Screw-lock prevents disconnections in high-traffic environments. |
Digital Signage & POS Systems Add USB-C peripherals to media players, POS tablets, and signage displays. Wall-mount the hub behind the screen for a clean, invisible installation. |
